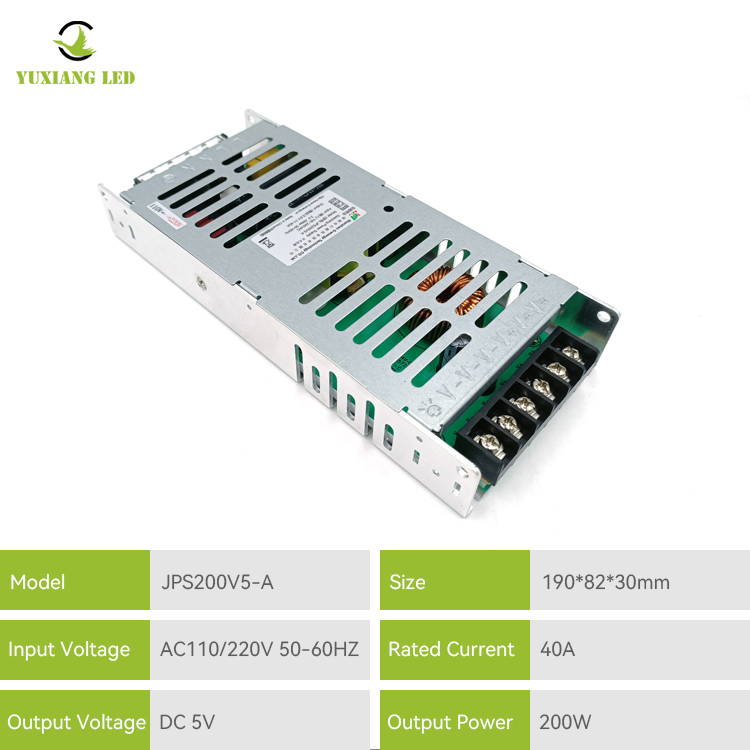

JPS200V5-A 5v 40a Led Display Screen Power Supply

Guangzhou Yuxiang is a professional manufacturer of JPS200V5-A 5v 40a Led Display Screen Power Supply in China, has accumulated many years of product research and development experience, we with professional service, excellent product quality and competitive prices with friends at home and abroad to establish cooperative relations and won the trust of customers, Products are exported to Southeast Asia, Australia, South America, Africa, the Middle East, Europe and other countries and regions, looking forward to becoming your loyal partner in China.

Send Inquiry

Product Description

1、The JPS200V5-A 5v 40a Led Display Screen Power Supply has the characteristics of small volume, high efficiency, stable operation and high reliability.
2、The power supply has input under-voltage, output current limiting, output short circuit and so on.
3、 The synchronous rectifier circuit greatly improves the efficiency of the power supply and saves energy consumption.
4, power input voltage 110V/220V adjustable.

Product Parameters

Product model:：	JPS200V5-A
Input voltage range:：	AC110/220V 50-60HZ
Output voltage:：	DC 5V
Output current：	40A
Output power	200W
Output voltage accuracy	±2%
Work efficiency	85%
Dc voltage adjustable range	-5%~+10% -5% to +10% of the rated output voltage
Overload protection	105-150% hiccup mode, automatic recovery
Overvoltage protection	100-135% diode clamp, cut off output, automatic recovery
Operating temperature humidity	-30°C~+50°C，20%-90%RH
Safety certification	CE,ROHS
Product size	1908230
Product weight	0.42KG
/Package/Weight	30PCS/CTN, 12.85KG

Features：

1, this ultrathin JPS200V5-A 5v 40a Led Display Screen Power Supply, the appearance of the breathable design, the body heat dissipation is strong, durable.
2, soft start current protection mechanism, effectively reduce AC input impact, effective short circuit protection.
3, circuit design, component layout scientific and reasonable, to ensure product performance, high quality.
4, all copper coil, through the control resistance to increase the durability and stability of the product.
5, the product has overvoltage, overload, short circuit and other multiple protection functions, stable and reliable quality, longer service life.
6, we provide 2 years warranty, after-sales worry.
7, you can rest assured to buy regular or customized products from us, we look forward to working with you.
8,Switching power supply is widely used in LED light, LED advertising display, LED commercial display, outdoor large led color display, billboard and so on.

application
