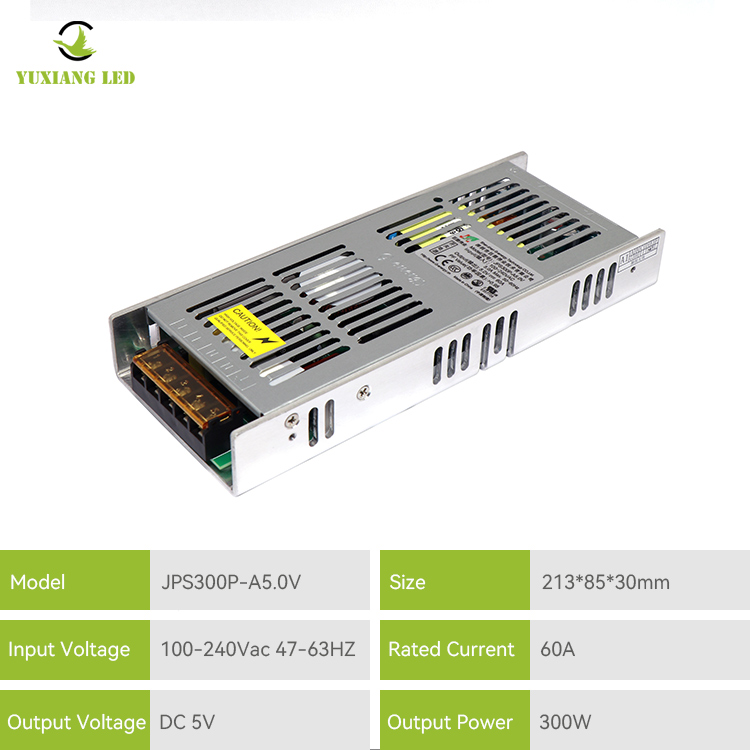

5V 60A 300W Led Display Screen Power Supply JPS300P-A5.0V
Choose Guangzhou Yuxiang's 5V 60A 300W Led Display Screen Power Supply JPS300P-A5.0V to ensure that your LED display can run stably in any environment. Not only can it improve reliability, but it can also provide excellent display effects and energy saving.
Send Inquiry
Product Description
1、The 5V 60A 300W Led Display Screen Power Supply JPS300P-A5.0V has the characteristics of small volume, high efficiency, stable operation and high
reliability.
2、The power supply has input under-voltage, output current limiting, output short circuit and so on.
3、 The synchronous rectifier circuit greatly improves the efficiency of the power supply and saves energy consumption.
2、The power supply has input under-voltage, output current limiting, output short circuit and so on.
3、 The synchronous rectifier circuit greatly improves the efficiency of the power supply and saves energy consumption.
Product Parameters
| Product model | JPS300P-A5.0V |
| Input voltage range | 100-240Vac 47-63HZ |
| Output voltage | DC 5V |
| Output current | 60A |
| Output power | 300W |
| Output voltage accuracy | 2% |
| Work efficiency | 88% |
| Dc voltage adjustable range | -5%~+10% -5% to +10% of the rated output voltage |
| Overload protection | 105-150% hiccup mode, automatic recovery |
| Overvoltage protection | 100-135% diode clamp, cut off output, automatic recovery |
| Operating temperature humidity | -30°C~+50°C，20%-90%RH |
| Safety certification | UL CE |
| Product size | 213*85*30mm |
| Product weight | 0.65KG |
| /Package/Weight | 20PCS/CTN, 13.60KG |
Features：
1, This 5V 60A 300W Led Display Screen Power Supply JPS300P-A5.0V, the appearance of the breathable design, the body heat dissipation is strong, durable.
2,Soft start current protection mechanism, effectively reduce AC input impact, effective short circuit protection.
3,Circuit design, component layout scientific and reasonable, to ensure product performance, high quality.
4,All copper coil, through the control resistance to increase the durability and stability of the product.
5, The product has over voltage, overload, short circuit and other multiple protection functions, stable and reliable quality, longer service life.
6, We provide 3 years warranty, after-sales worry.
7, You can rest assured to buy regular or customized products from us, we look forward to working with you.
8,Switching power supply is widely used in LED light, LED advertising display, LED commercial display, outdoor large led color display, billboard and so on.
2,Soft start current protection mechanism, effectively reduce AC input impact, effective short circuit protection.
3,Circuit design, component layout scientific and reasonable, to ensure product performance, high quality.
4,All copper coil, through the control resistance to increase the durability and stability of the product.
5, The product has over voltage, overload, short circuit and other multiple protection functions, stable and reliable quality, longer service life.
6, We provide 3 years warranty, after-sales worry.
7, You can rest assured to buy regular or customized products from us, we look forward to working with you.
8,Switching power supply is widely used in LED light, LED advertising display, LED commercial display, outdoor large led color display, billboard and so on.
application
