Dimmable LED Power Supply 12V 200W TRIAC 0-10V
Guangzhou Yuxiang as a professional manufacturer of power supply in China, you can rest assured to buy our high quality Dimmable LED Power Supply 12V 200W TRIAC 0-10V, we have accumulated many years of experience in product research and development, products are exported to Southeast Asia, Australia, South America, Africa, the Middle East, Europe and other countries and regions, we will provide you with high-quality, low-cost products. We look forward to being your loyal partner in China.
Send Inquiry
Product Description
1. Guangzhou Yuxiang high-quality Dimmable LED Power Supply 12V 200W TRIAC 0-10V, using ultra-thin high-density aluminum alloy honeycomb hollow shell, efficient and silent heat dissipation, energy saving and power saving.
2. Our power supply raw materials are solid, double-sided glass fiber board placement process, high reliability; Pure copper transformer, sufficient power; High-voltage filter capacitor, strong impact resistance; Varistor overvoltage protection, lightning protection, safer
3. The dimmable power supply has multiple protection functions such as overvoltage, overload, short circuit, etc., and 100% full-load aging test to ensure the quality of shipment, and is a reliable power supply supplier in China.
4. Our power supply 100% of them have passed the AC1500V high voltage test, and the average trouble-free service time is more than 50,000 hours.
5. Our Dimmable LED Power Supply 12V 200W TRIAC 0-10V provides 3 years warranty, made in China, worry-free after-sales.
2. Our power supply raw materials are solid, double-sided glass fiber board placement process, high reliability; Pure copper transformer, sufficient power; High-voltage filter capacitor, strong impact resistance; Varistor overvoltage protection, lightning protection, safer
3. The dimmable power supply has multiple protection functions such as overvoltage, overload, short circuit, etc., and 100% full-load aging test to ensure the quality of shipment, and is a reliable power supply supplier in China.
4. Our power supply 100% of them have passed the AC1500V high voltage test, and the average trouble-free service time is more than 50,000 hours.
5. Our Dimmable LED Power Supply 12V 200W TRIAC 0-10V provides 3 years warranty, made in China, worry-free after-sales.

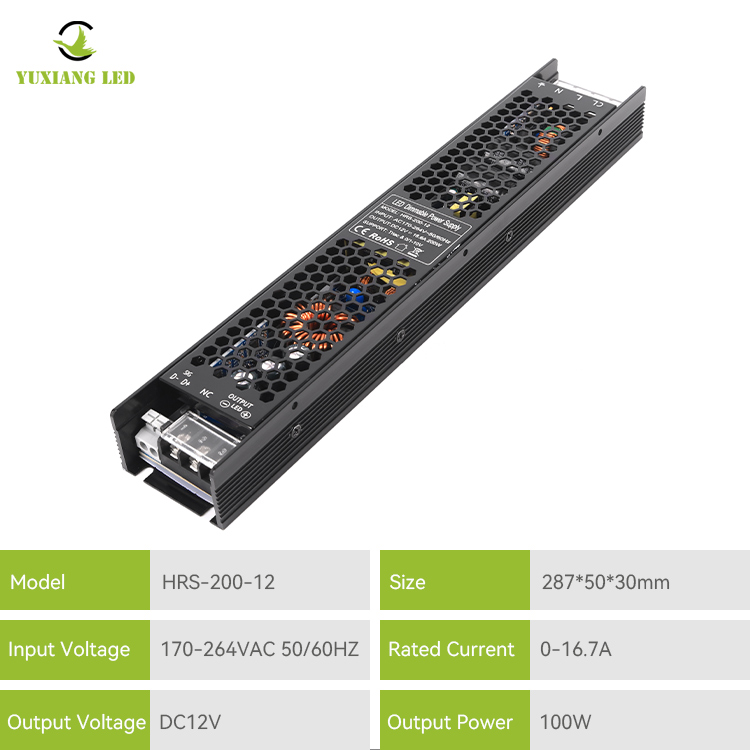

Product Parameters
| Product model | HRS-200-12 |
| Input voltage range | 170-264VAC 50/60HZ |
| Output voltage | DC12V |
| Output current | 0-16.7A |
| Output power | 100W |
| Output voltage accuracy | 0.5% |
| Work efficiency | 85% |
| Dc voltage adjustable range | -5% to +10% of the rated output voltage |
| Overload protection | 105-150% hiccup mode, automatic recovery |
| Overvoltage protection | 100-135% diode clamp, cut off output, automatic recovery |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Operating temperature humidity | -20°C~+50°C，20%-60%RH |
| Safety certification | CE,ROHS |
| Product size | 287*50*30mm |
| Product weight | 0.47KG |
| /Package/Weight | 50PCS/CTN, 24.5KG |
| Notes | 1.All parameters NOT specially mentioned are measured at 230VAC input . rated load and 25Cofambient temperature.Notes2Tolerance: includes set up tolerance, line regulation and load regulation .。3.The power supply is considered as a component that will be operated in combination with final Eauipment. Since EMC performance will be affected by the complete installation. the finalequipment manufactures must be-qualify EMC Directive on the complete installation again |
Features：
1, The high-quality Dimmable LED Power Supply 12V 200W TRIAC 0-10V circuit design and component layout are scientific and reasonable, and the thyristor dimming is supported to ensure high efficiency and energy saving.
2. The power terminal adopts a transparent protective cover, which can not only prevent dust, but also reduce accidental touch, and make it safer to use.
3. The power supply supports 0-10V dimming.
4. The flexible start circuit is stable, the pure output is harmonious power, and the intelligent current limit protects the LED.
5. This dimmable driver is widely used in indoor LED lighting fixtures, indoor LED decoration projects, indoor LED advertising projects, etc.
2. The power terminal adopts a transparent protective cover, which can not only prevent dust, but also reduce accidental touch, and make it safer to use.
3. The power supply supports 0-10V dimming.
4. The flexible start circuit is stable, the pure output is harmonious power, and the intelligent current limit protects the LED.
5. This dimmable driver is widely used in indoor LED lighting fixtures, indoor LED decoration projects, indoor LED advertising projects, etc.
