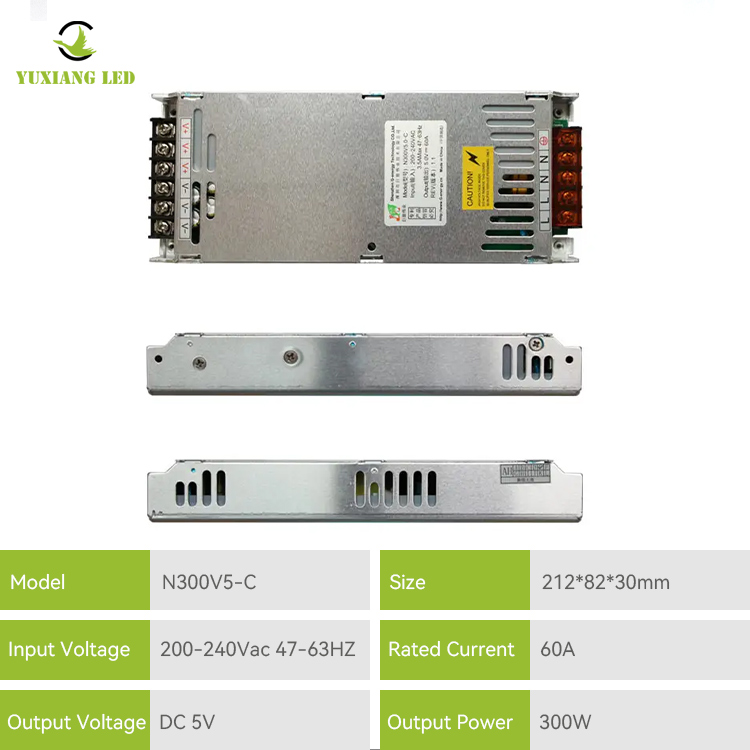

5V 60A 300W Led Display Screen Power Supply N300V5-C

Guangzhou Yuxiang is a professional manufacturer of switching power supply in China, has accumulated many years of 5V 60A 300W Led Display Screen Power Supply N300V5-C research and development experience, we with professional service, excellent product quality and competitive prices with friends at home and abroad to establish cooperative relations and won the trust of customers, Products are exported to Southeast Asia, Australia, South America, Africa, the Middle East, Europe and other countries and regions, looking forward to becoming your loyal partner in China.

Send Inquiry

Product Description

1、The 5V 60A 300W Led Display Screen Power Supply N300V5-C has the characteristics of small volume, high efficiency, stable operation and high reliability.
2、The power supply has input under-voltage, output current limiting, output short circuit and so on.
3、 The synchronous rectifier circuit greatly improves the efficiency of the power supply and saves energy consumption.

Product Parameters

Product model	N300V5-C
Input voltage range	200-240Vac 47-63HZ
Output voltage	DC 5V
Output current	60A
Output power	300W
Output voltage accuracy	2%
Work efficiency	86%
Dc voltage adjustable range	-5%~+10% -5% to +10% of the rated output voltage
Overload protection	105-150% hiccup mode, automatic recovery
Overvoltage protection	100-135% diode clamp, cut off output, automatic recovery
Operating temperature humidity	-30°C~+50°C，20%-90%RH
Safety certification	CE
Product size	2128230mm
Product weight	0.55KG
/Package/Weight	20PCS/CTN, 11.60KG

Features：

1, this 5V 60A 300W Led Display Screen Power Supply N300V5-C, the appearance of the breathable design, the body heat dissipation is strong, durable.
2, soft start current protection mechanism, effectively reduce AC input impact, effective short circuit protection.
3, circuit design, component layout scientific and reasonable, to ensure product performance, high quality.
4, all copper coil, through the control resistance to increase the durability and stability of the product.
5, the product has overvoltage, overload, short circuit and other multiple protection functions, stable and reliable quality, longer service life.
6, we provide 3 years warranty, after-sales worry.
7, you can rest assured to buy regular or customized products from us, we look forward to working with you.
8,Switching power supply is widely used in LED light, LED advertising display, LED commercial display, outdoor large led color display, billboard and so on.
