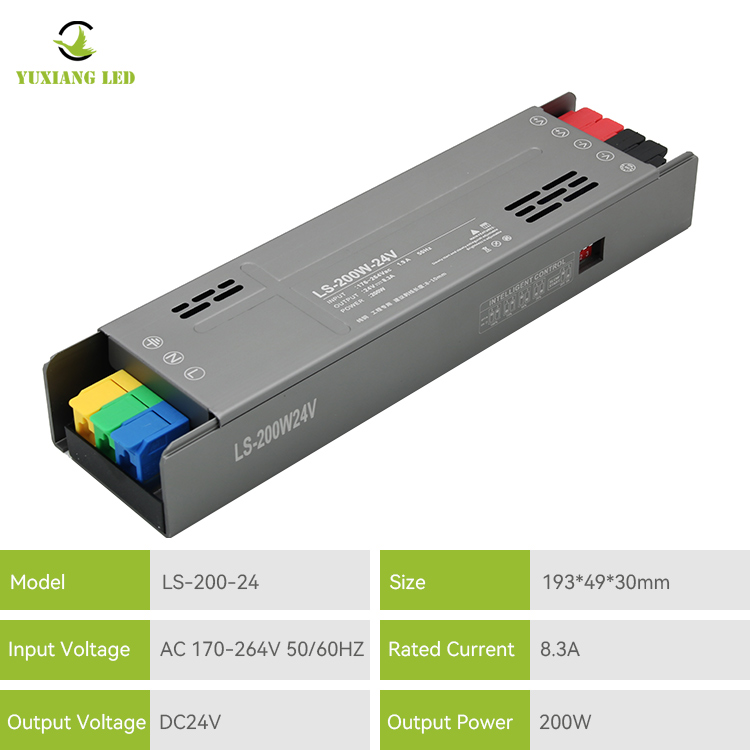

Semi-Potted Rubber Model Full Power 24V200W Linear Lighting Power Supply
As a professional R&D, production and sales of switching power supply manufacturers in China for many years, Guangzhou Yuxiang has adopted a new design and ultra-hard core components for our Semi-Potted Rubber Model Full Power 24V200W Linear Lighting Power Supply, which is very stable in operation, very reliable in quality and perfect in cost performance. You can buy with confidence. Products are exported to Southeast Asia, Australia, the United States, Africa, the Middle East, Europe and other countries and regions, sincerely look forward to cooperating with you in the near future to create a better future!
Send Inquiry
Product Description
1.Guangzhou Yuxiang high-quality Semi-Potted Rubber Model Full Power 24V200W Linear Lighting Power Supply, 100% full power, using high-density aluminum alloy pickling shell, high-quality high-current press terminal, quick installation, 4-speed dial dimming, slow start function, more convenient to use.
2.Our power supply raw materials are solid, double-sided glass fiber board placement process, high reliability; High-voltage pure copper common touch filter, stronger anti-interference; Pure copper transformer, more power; High-voltage filter capacitor, strong impact resistance; , varistor overvoltage protection, lightning protection, safer; Large-chip high-voltage rectifier bridge stack, strong overload capacity.
3.The power supply has multiple protection functions such as overvoltage, overload, and short circuit, and can be used all day long. 100% full-load aging test to ensure the quality of shipments, and it is a reliable power supply supplier in China.
4.Our power supply provides a 5-year warranty, with a life > 35,000 hours, worry-free after-sales.
5.Our power supply adopts resonant scheme: full power, low loss, energy saving, multiple filtering, anti-interference and anti-surge, you can buy our customized and conventional power supply from China with confidence.
2.Our power supply raw materials are solid, double-sided glass fiber board placement process, high reliability; High-voltage pure copper common touch filter, stronger anti-interference; Pure copper transformer, more power; High-voltage filter capacitor, strong impact resistance; , varistor overvoltage protection, lightning protection, safer; Large-chip high-voltage rectifier bridge stack, strong overload capacity.
3.The power supply has multiple protection functions such as overvoltage, overload, and short circuit, and can be used all day long. 100% full-load aging test to ensure the quality of shipments, and it is a reliable power supply supplier in China.
4.Our power supply provides a 5-year warranty, with a life > 35,000 hours, worry-free after-sales.
5.Our power supply adopts resonant scheme: full power, low loss, energy saving, multiple filtering, anti-interference and anti-surge, you can buy our customized and conventional power supply from China with confidence.
Product Parameters
| Product model | LS-200-24 | |
| Input voltage range | AC 170-264V 50/60HZ | |
| Output voltage | DC24V | |
| Output current | 8.3A | |
| Output power | 200W | |
| Output voltage accuracy | 0.5% | |
| Work efficiency | 91% | |
| Dc voltage adjustable range | -5% to +10% of the rated output voltage | |
| Inrush Current | 50A Less than 50A/230Vac, cold start | |
| Overload protection | 105-150% hiccup mode, automatic recovery | |
| Overvoltage protection | 100-135% diode clamp, cut off output, automatic recovery | |
| Short- Circuit Protection | Protection Type : Hiccup mode, Auto-recovery | |
| Operating temperature | -30～60℃ （Reference To Derating Curve） | |
| Working Humidity | 20～90% RH non-condensing | |
| DIPswitch function | Dial status | Output power |
| 1.Undialed status | 100% | |
| 2.Dial the No. 1 switch | 75% | |
| 3. Dial the No. 2 switch | 50% | |
| 4. Dial the switch No. 1-2 | 25% | |
| 5. Dial the No. 3 switch | The slow start function is turned on | |
| Safety certification | CE,ROHS | |
| Product size | 193*49*30mm | |
| Product weight | 0.309KG | |
| Package/Weight | 50PCS/CTN, 15.4KG | |
Product features and applications：
1. High-quality Semi-Potted Rubber Model Full Power 24V200W Linear Lighting Power Supply, the appearance of which is made of thickened aluminum alloy pickling shell.
2. New component layout, scientific and reasonable circuit design, low loss, stable product performance, and ≥ efficiency of 94%.
3. The power terminal adopts the press type, which is not only convenient for wiring, can prevent dust, but also reduces accidental touch, and is safer to use.
4. LLC resonance scheme, 100% full power, using high-temperature capacitor filtering, large capacity and stable power supply.
5. Switching power supply is widely used in advertising light boxes, LED light strips, LED modules, LED bulbs, low-voltage lighting systems, indoor LED flood lights, magnetic lights, light strips, street lights, display screens, lighting and other LED lighting projects.
2. New component layout, scientific and reasonable circuit design, low loss, stable product performance, and ≥ efficiency of 94%.
3. The power terminal adopts the press type, which is not only convenient for wiring, can prevent dust, but also reduces accidental touch, and is safer to use.
4. LLC resonance scheme, 100% full power, using high-temperature capacitor filtering, large capacity and stable power supply.
5. Switching power supply is widely used in advertising light boxes, LED light strips, LED modules, LED bulbs, low-voltage lighting systems, indoor LED flood lights, magnetic lights, light strips, street lights, display screens, lighting and other LED lighting projects.
application
Product Details
