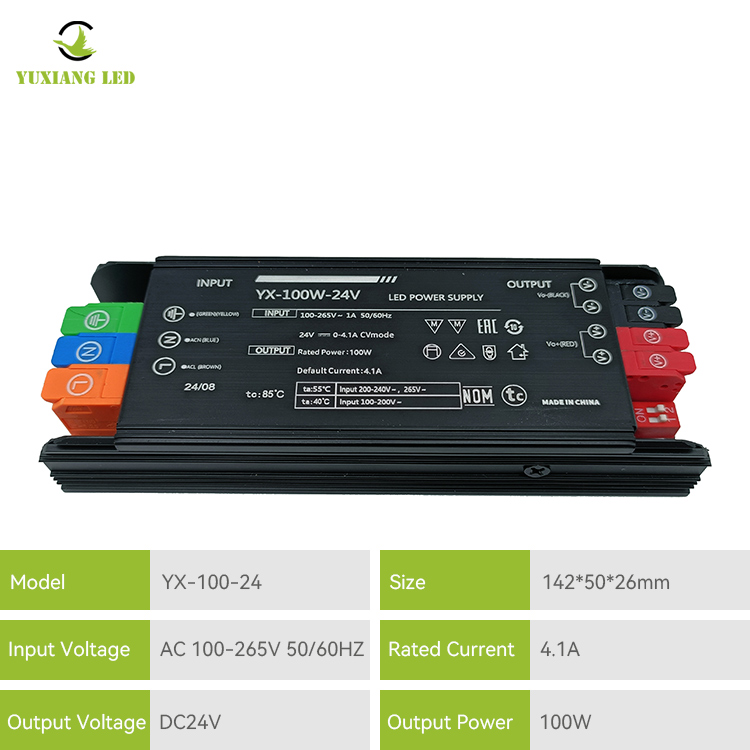

LED 24v 100w Led Linear Lighting Power Supply
As a professional R&D and production of switching power supply manufacturers in China for many years, Guangzhou Yu xiang has a very mature solution for this high-quality LED 24v 100w Led Linear Lighting Power Supply, which is very stable, with very reliable quality and perfect cost performance. You can buy with confidence. Products are exported to Southeast Asia, Australia, South America, Africa, the Middle East, Europe and other countries and regions, sincerely look forward to cooperating with you in the near future to create a better future!
Send Inquiry
Product Description
1. Guangzhou Yuxiang high-quality LED 24v 100w Led Linear Lighting Power Supply, using thickened high-density aluminum alloy shell, natural air cooling and fast heat dissipation, high-quality high-current press terminals, quick installation, more convenient to use, 4-speed dial brightness dimming.
2. Our power supply raw materials are solid, double-sided glass fiber board placement process, high reliability; High-voltage pure copper and copper foil common touch filter, stronger anti-interference; Thickened copper foil transformer, more power; High-voltage filter capacitor, strong impact resistance; Brand high-frequency and large-capacity electrolytic capacitors, varistor overvoltage protection, lightning protection, safer; Large-chip high-voltage rectifier bridge stack, strong overload capacity.
3. The power supply has multiple protection functions such as overvoltage, overload, and short circuit. 100% full-load aging test to ensure the quality of shipments, and it is a reliable power supply supplier in China.
4. Our power supply provides 3 years warranty, life > 35000 hours, made in China, worry-free after-sales.
5. Our power supply adopts a resonant scheme: full power, low loss, energy saving, multiple filtering, strong anti-surge ability, you can buy our customized and conventional power supply from China with confidence.
2. Our power supply raw materials are solid, double-sided glass fiber board placement process, high reliability; High-voltage pure copper and copper foil common touch filter, stronger anti-interference; Thickened copper foil transformer, more power; High-voltage filter capacitor, strong impact resistance; Brand high-frequency and large-capacity electrolytic capacitors, varistor overvoltage protection, lightning protection, safer; Large-chip high-voltage rectifier bridge stack, strong overload capacity.
3. The power supply has multiple protection functions such as overvoltage, overload, and short circuit. 100% full-load aging test to ensure the quality of shipments, and it is a reliable power supply supplier in China.
4. Our power supply provides 3 years warranty, life > 35000 hours, made in China, worry-free after-sales.
5. Our power supply adopts a resonant scheme: full power, low loss, energy saving, multiple filtering, strong anti-surge ability, you can buy our customized and conventional power supply from China with confidence.
Product Parameters
| Product model | YX-100-24 | |
| Input voltage range | AC 100-265V 50/60HZ | |
| Output voltage | DC24V | |
| Output current | 4.1A | |
| Output power | 100W | |
| Output voltage accuracy | 0.5% | |
| Work efficiency | 89% | |
| Dc voltage adjustable range | -5% to +10% of the rated output voltage | |
| Overload protection | 105-150% hiccup mode, automatic recovery | |
| Overvoltage protection | 100-135% diode clamp, cut off output, automatic recovery | |
| Operating temperature humidity | -20°C~+50°C，20%-90%RH | |
| Safety certification | CE,ROHS | |
| Product size | 142*50*26mm | |
| Product weight | 0.15KG | |
| /Package/Weight | 108PCS/CTN, 19KG | |
| Brightness DIPswitch function | Dial status | Output power |
| 1.Undialed status | 100% | |
| 2.Dial the No. 1 switch | 75% | |
| 3. Dial the No. 2 switch | 50% | |
| 4. Dial the switch No. 1-2 | 35% | |
Features
1, High quality LED 24v 100w Led Linear Lighting Power Supply, the appearance is made of thickened aluminum shell, anti-wear and durable.
2.The circuit design and component layout are scientific and reasonable to ensure that the products are high-performance, high-quality, and 100% full power.
3.The power terminal block is a push-to-press type, which not only prevents dust, but also reduces false touches, making it safer to use.
4, The power supply adopts high-temperature capacitor filtering, with large capacity and stable power supply.
5, This linear switching power supply is widely used in advertising light boxes, LED strips, LED modules, LED bulbs, low-voltage lighting systems, indoor LED flood lights, magnetic lights, light strips, street lights, display screens, lighting and other LED lighting projects.
2.The circuit design and component layout are scientific and reasonable to ensure that the products are high-performance, high-quality, and 100% full power.
3.The power terminal block is a push-to-press type, which not only prevents dust, but also reduces false touches, making it safer to use.
4, The power supply adopts high-temperature capacitor filtering, with large capacity and stable power supply.
5, This linear switching power supply is widely used in advertising light boxes, LED strips, LED modules, LED bulbs, low-voltage lighting systems, indoor LED flood lights, magnetic lights, light strips, street lights, display screens, lighting and other LED lighting projects.
Product Details
