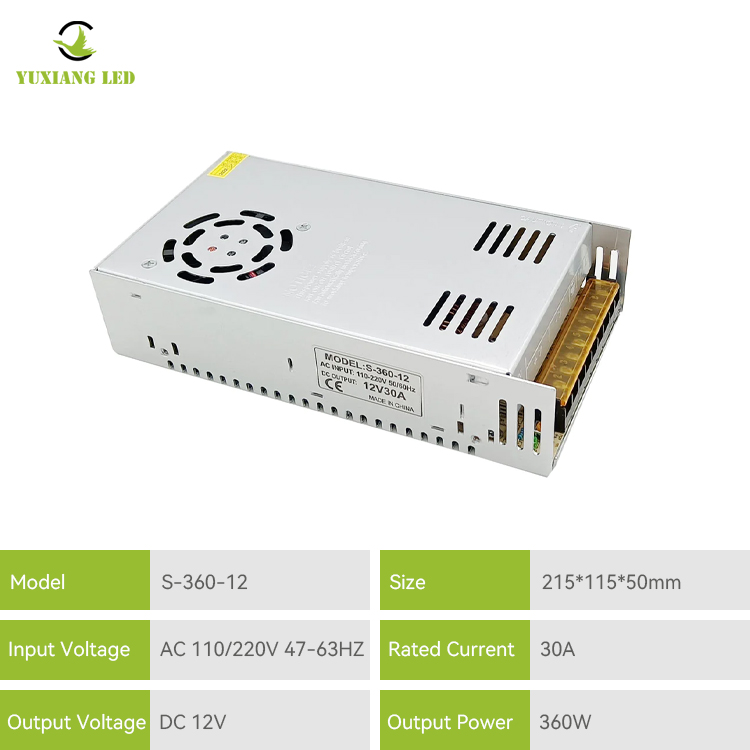

12v 30a Switching Power Supply

Guangzhou Yuxiang as a professional R & D, production of 12v 30a Switching Power Supply manufacturers for many years, our 12V360W power supply is very mature, very stable performance, very reliable quality, cost-effective is perfect. You can buy it with 100% confidence. Our products has been exported to Southeast Asia,Europe , South America, Africa, the Middle East, Australia and other regions, we will be glad to serve you, looking forward to becoming your loyal partner in China, create a better future!

Send Inquiry

Product Description

1, 12v 30a Switching Power Supply with 100% new electronic components, reliable quality, long life.
2. 100% Full-load aging test to ensure quality.
3, The product has multiple protection functions such as over-volt, over-load, over-temp, stable and reliable quality.
4, Two years warranty, excellent after-sale service.
5, You can buy customized and regular products from us with 100% confidence.
6, High level of professionalism, excellent service and reliable quality.

Product Parameters

Product model:：	S-360-12
Input voltage range:：	AC 110/220V 47-63HZ
Output voltage:：	DC 12V
Output current：	30A
Output power	360W
Output voltage accuracy	土2%
Work efficiency	86%
Dc voltage adjustable range	-5% to +10% of the rated output voltage
Overload protection	105-150% hiccup mode, automatic recovery
Overvoltage protection	100-135% diode clamp, cut off output, automatic recovery
Operating temperature humidity	-15°C~+60°C，20%-90%RH
Safety certification	CE,ROHS
Product size	21511550mm
Product weight	0.70KG
Package/Weight	36PCS/CTN, 26KG

Features：

1,12v 30a Switching Power Supply adopt thickened aluminum shell, durable, fast fan heat dissipation, better protect power supply.
2, Circuit design and components layout scientific and reasonable to ensure product high performance& good quality.
3, The whole series of switching power supply is equipped with 110/220V , universal all the world, the factory default is adjusted to 220V input. (If your country 110vac input, please switch the input voltage into 110VAC by hand switch) 4, The power terminal adopts transparent protective cover, which can dust-proof, also reduce miscontact and make it safer to use.
5, Use high-quality potential regulator, can adjust the output voltage accurately.
6, Use high temperature capacitance filter, large capacity, stable power supply.
7, The product is optional with intelligent temperature control fan, when the temperature exceeds 45 degrees, automatically open the fan heat dissipation, can extend the life of the power supply, more energy saving.
8, Switching power supply is widely used in led light letters, lamp strips and modules, led display, led lighting, 3D printing, automation equipment, lighting instruments, power, industrial control, traffic, network communication, security CCTV camera systems and other fields.

Application:
